MODEL SPECS
Name:

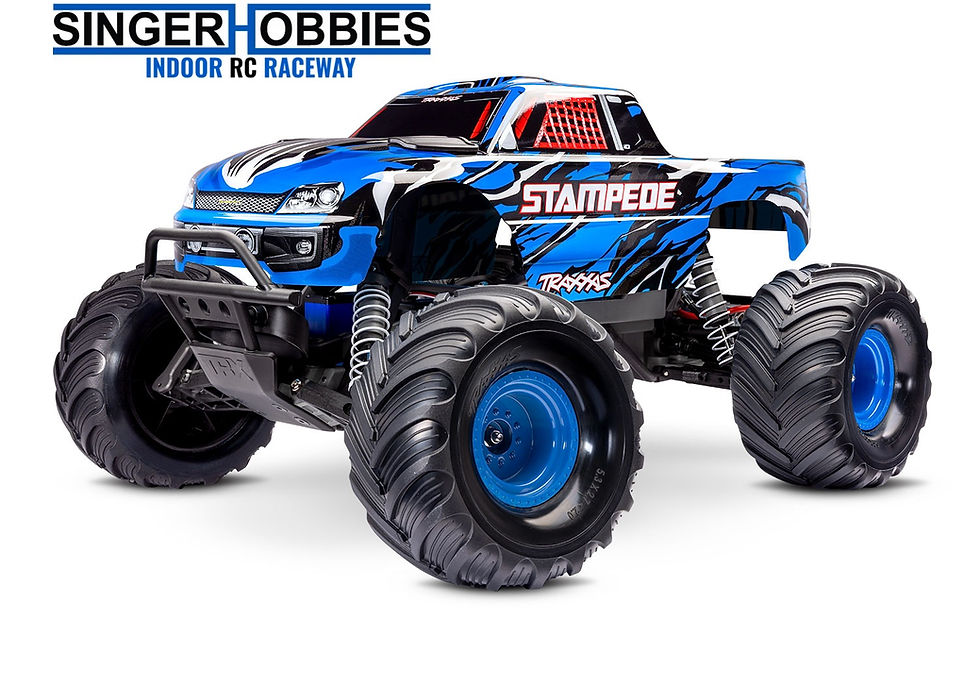

Stampede 2WD HD w/USB-C
Type:
Monster Truck
Speed:
30+ mph with 7-cell battery
Skill Level:
1
Scale:
1/10
Weight:
4.08 pounds (1.85 kg)
Length:
16.25 inches (413 mm)
Width:
12.75 inches (324 mm)
Front Track:
12.75 inches (324 mm)
Rear Track:
12.75 inches (324 mm)
Height:
9.5 inches (241 mm)
Wheelbase:
10.63 inches (270 mm)
Center Ground Clearance:
4 inches (102 mm)
Driveline:
2WD
Transmission:
Magnum 272™
Differential Type:
Planetary steel gear
Gear Ratio (Internal):
2.72 (final drive: 12.34)
Gear Pitch:
48 pitch
Steering Servo:
2056 high-torque waterproof
Radio System:
TQ™ 2.4 GHz 2-channel radio
Battery Compartment Specs:
164 mm X 46 mm X 26 mm
MOTOR SPECS
Name:
Titan 12T 550
Type:
High-speed brushed motor
Weight:
8.47 ounces (240 g)
Length:
3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Diameter:
1.41 inches (36 mm)
Shaft Size:
3 mm
Connector Type:
Bullet
ESC SPECS
Name:
Waterproof XL-5™ ESC with low-voltage detection
Type:
Brushed
Case Size:
1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
Weight:
2.44 ounces (69 g)
Motor Connectors:
Bullet
Battery Connectors:
Traxxas High-Current Connector
Power Wire:
14 gauge

Clipless Monster Truck Body
Tough LED-ready front and rear bumpers
Includes wheelie bar
Body reinforcements to prevent pull-through damage
Holds tight for intense action
Quick and easy removal
Smooth appearance with no body posts or clips
High-Performance Waterproof XL-5™ Electronic Speed Control
Innovative waterproof design
Three drive profiles
Sport Mode - forward / brake / reverse
Race Mode - forward / brake
Training Mode™ - 50% forward / brake / 50% reverse (patented)
Traxxas EZ-Set® one-button setup
LiPo and NiMH compatible with two-stage low-voltage detection
Titan® 12T 550 Brushed Motor
Internal cooling fan
Oversized armature for big torque and increased power handling
Virtually maintenance-free operation
Extreme Heavy Duty Parts Installed
Strengthened C-hubs, axle carriers, and steering blocks
HD suspension arms
TQ™ 2.4 GHz 2-Channel Radio System
Ergonomic transmitter with internal antenna
Traxxas 6519 3-channel micro receiver with fail-safe security
Sealed watertight receiver box keeps the receiver dry

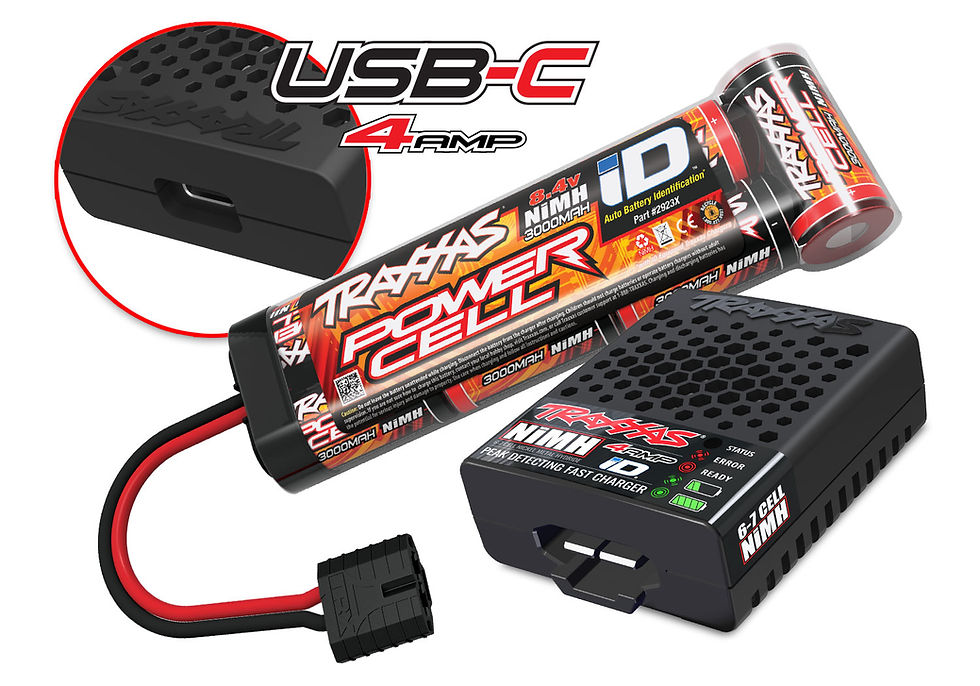

Includes Battery and USB-C Charger
4-amp USB-C fast charger
3000 mAh Traxxas 7-cell 8.4 V NiMH battery with iD®
Easy Access Battery Compartment
Accepts NiMH 6 and 7-cell flat packs and hump packs
Accepts 2-cell LiPo batteries
Transmission and Driveline
Brushless-ready Magnum 272™ metal-gear transmission
Torque-Control™ slipper clutch system
Planetary gear differential with steel ring gear
Sealed gearbox protects the transmission with beefed up motor guard
External gear cover with easy clutch access
Heavy-duty telescoping U-joint driveshafts and yokes
Tough Fiber-Composite Monocoque Chassis
Tall 4" center ground clearance to drive over obstacles
Steering
High-torque waterproof Traxxas 2056 steering servo
Spring-loaded servo saver helps protect against impacts

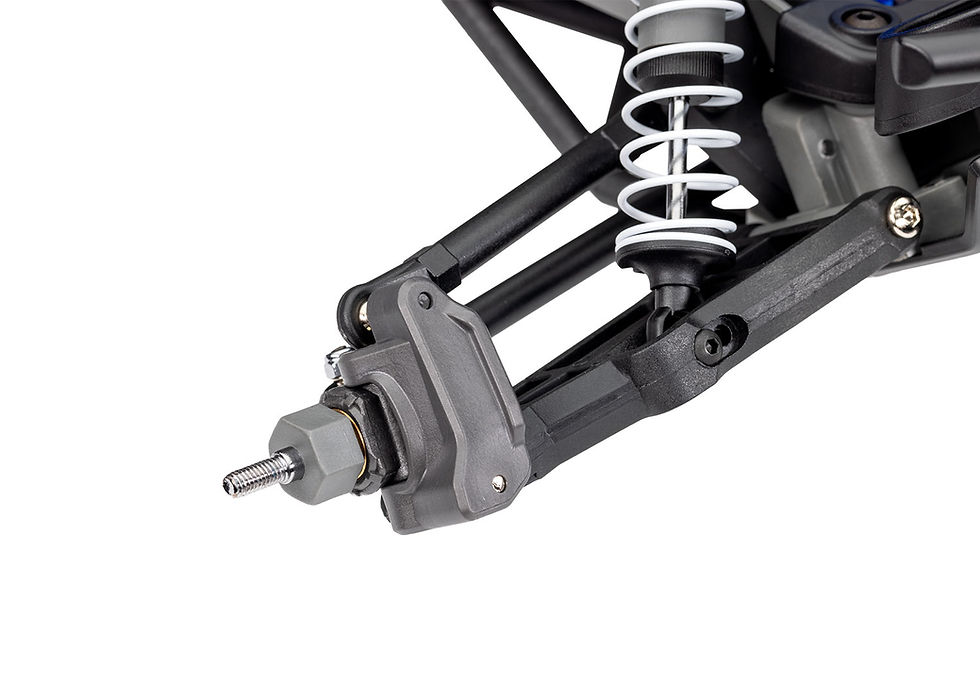

Suspension
Durable solid camber links eliminate the need for adjustment
Captured rod ends won't pop off
Springs and Shocks
Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
White powder-coated springs
Wheels and Tires
Pre-glued high-profile Terra Groove shaved monster truck tires
2.2" monster truck tires
Precision Hex Hardware
