Free LiPo Battery (2827X) and Charger (2920)

Model Type:

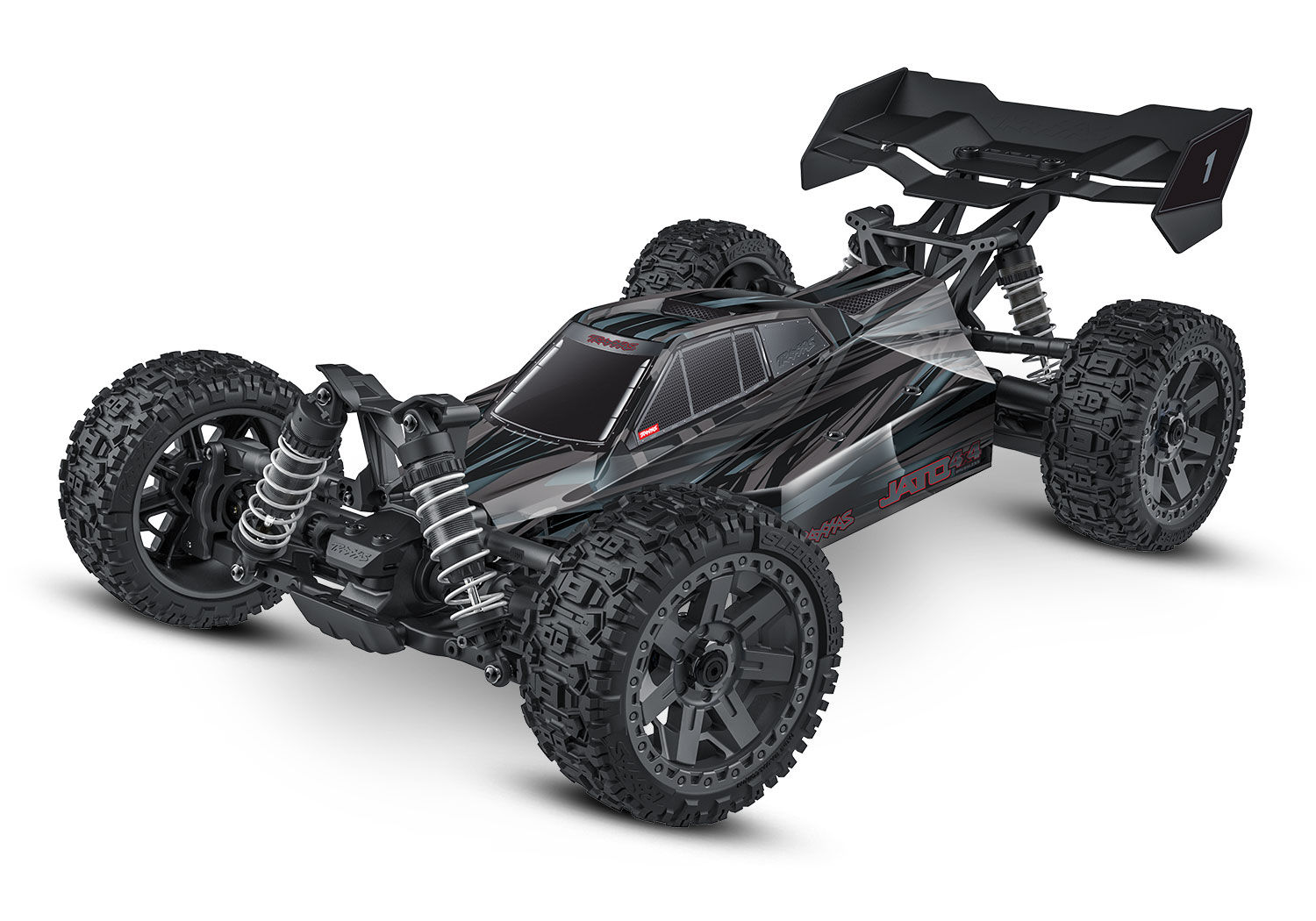

1/8 scale buggy
Skill Level:
1
Length:
20.4 inches (517 mm)
Width:
12 inches (305 mm)
Height:
7 inches (179 mm)
Weight:
5.2 pounds (2.36 kg)
Wheelbase:
12.6 inches (320 mm)
Front Track:
12 inches (305 mm)
Rear Track:
12 inches (305 mm)
Shock Length (front):
3.98 inches (101 mm) - XX-long
Shock Length (rear):
3.98 inches (101 mm) - XX-long
Differential Type:
Hardened steel bevel, sealed, limited slip
Gear Pitch:
32
Overall Drive Ratio:
12.80:1
Drive System:
Shaft-driven 4WD
Steering:
Dual-bellcrank with integrated servo saver
Chassis Structure/Material:
Composite tub
Tires:
4.53″ Sledgehammer® with foam inserts
Wheels (front/rear):
3″ gray buggy wheels
Wheel Diameter:
3″ inches (78 mm)
Radio System:
TQ™ 2.4 GHz (2-channel)
Servo:
Waterproof digital 2075 servo (125 oz-in torque)
Battery Compartment (L/W/H):
165 mm x 50 mm x 23/26 mm
MOTOR SPECS
Motor Type:
BL-2s 3300 Kv sensorless brushless motor
Weight:
7.51 ounces (213 g)
Length:
3.15 inches (80 mm)
Diameter:
1.42 inches (36 mm)
Shaft Size:
3 mm
Connector Type:
Traxxas Quick Connect Motor Plug
ESC SPECS
Input Voltage (cells):
6-7 Cells NiMH / 2s LiPo
Case Size:
1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
Weight:
3.07 ounces (87 g)
BEC Voltage:
6.0 volts
Reverse Delay:
Yes, with lockout
Thermal Protection:
Two-stage thermal shutdown
Ports:
Auxiliary fan
