MODEL SPECS
Name:

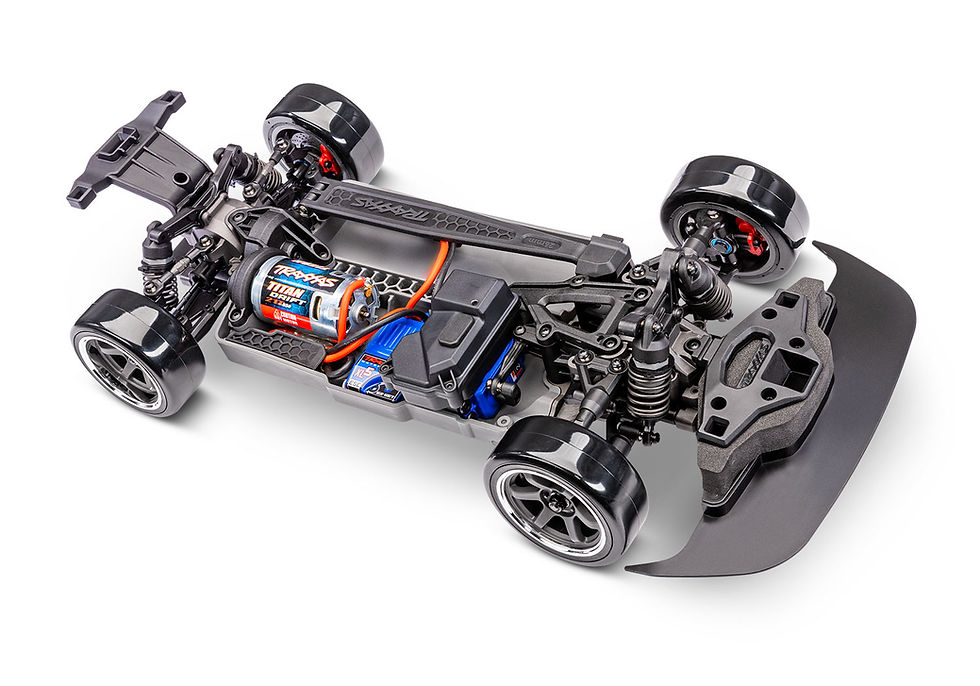

4-Tec Drift Nissan 240SX
Type:
On-Road Cars
Skill Level:
1
Scale:
1/10
Weight:
2.28 pounds (1.30 kg)
Length:
18.38 inches (467 mm)
Width:
8.50 inches (216 mm)
Front Track:
7.87 inches (200 mm)
Rear Track:
7.87 inches (200 mm)
Height:
5.15 inches (131 mm)
Wheelbase:
10.11 inches (257 mm)
Center Ground Clearance:
0.5 inches (12 mm)
Driveline:
Rear-wheel drive
Differential Type:
Spool
Gear Pitch:
48 pitch
Steering Servo:
2075 digital high-torque waterproof
Radio System:
TQi™ 2.4 GHz 3-channel transmitter
Battery Compartment Specs:
174 mm X 48 mm X 23 mm or 26 mm
MOTOR SPECS
Name:
Titan Drift 21T 550
Type:
High-torque brushed motor
Weight:
8.47 ounces (240 g)
Length:
3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Diameter:
1.53 inches (39 mm)
Shaft Size:
3 mm
Connector Type:
Bullet
ESC SPECS
Name:
Waterproof XL-5 ESC with low-voltage detection
Type:
Brushed
Case Size:
1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm)
Weight:
2.44 ounces (69 g)
Motor Connectors:
Bullet
Battery Connectors:
Traxxas High Current Connector
Power Wire:
14 gauge

Officially Licensed Nissan® 240SX Body
Clipless body eliminates body post holes
Injection molded details
Grille, splitter, side mirrors, and spoiler
Replica brake discs with red calipers
Clipless Body Mounts
Quick and easy removal of the body
Reinforced body mounts integrated into molded details
High-Performance Waterproof XL-5™ Electronic Speed Control
Innovative waterproof design
Three drive profiles
Sport Mode - forward / brake / reverse
Race Mode - forward / brake
Training Mode™ - 50% forward / brake / 50% reverse (patented)
Traxxas EZ-Set® one-button setup
LiPo and NiMH compatible with two-stage low-voltage detection
Titan® Drift Motor
21-turn brushed 550 motor
Internal cooling fan
Virtually maintenance-free operation
Fixed gear mesh motor plate
Molded wire retainer keeps motor wires secure
TQi™ 2.4 GHz Radio System with Wireless Module
TQi 3-channel transmitter
Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
Electronic handbrake
5-channel micro receiver (6533) with fail-safe security
Patented waterproof receiver box with easy-access plug
Traxxas Stability Management (TSM)® with 3 Drift Modes
TSM Drift Mode
Adjustable steering angle
Adjustable steering reflex
Adjustable throttle reflex
Spinout assist
TSM Mode
Gyro Mode
Adjusts from off to 100% assistance from the transmitter
Steering
Digital high-torque ball bearing 2075 servo
Optional High-Angle Steering Kit included
Provides 75° steering angle
Low Center of Gravity (Low CG) Chassis
Positions weight low for improved handling
Smooth underside resists drag and snags
Modular interlocking chassis pieces
Improves rigidity and tightens tolerances
Allows for easy maintenance
Adjustable Battery Hold Down
Easy, secure battery installation
Swivels to allow different height batteries
Locks securely without pins or parts to lose
High Performance Suspension
Geometry tuned for drifting
Dual rear camber link mounts
Adjustable droop, camber, toe, ackerman, track, & roll center
Rear-Wheel-Drive Layout
Direct drive, no slipper clutch
Rear spool with spiral-cut gears
Smooth and quiet running
Shocks & Springs
Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
Extra-soft springs to maximize weight transfer
Wheels & Tires
Six-spoke tuner wheels
Rubber wheel inserts hold tires securely
Includes hard and soft compound drift tires
Replica brake discs incorporate standard 12 mm wheel hexes
Rubber-Sealed Ball Bearings
Precision Hex Hardware
