ESC Overview:
Small in size but huge on performance, the Axial SCX30 MBL32-Nano Brushless ESC delivers whisper-quiet power, ultra-smooth crawler control, and ready-to-run simplicity — all packed into a waterproof, programmable design built to dominate the trail.

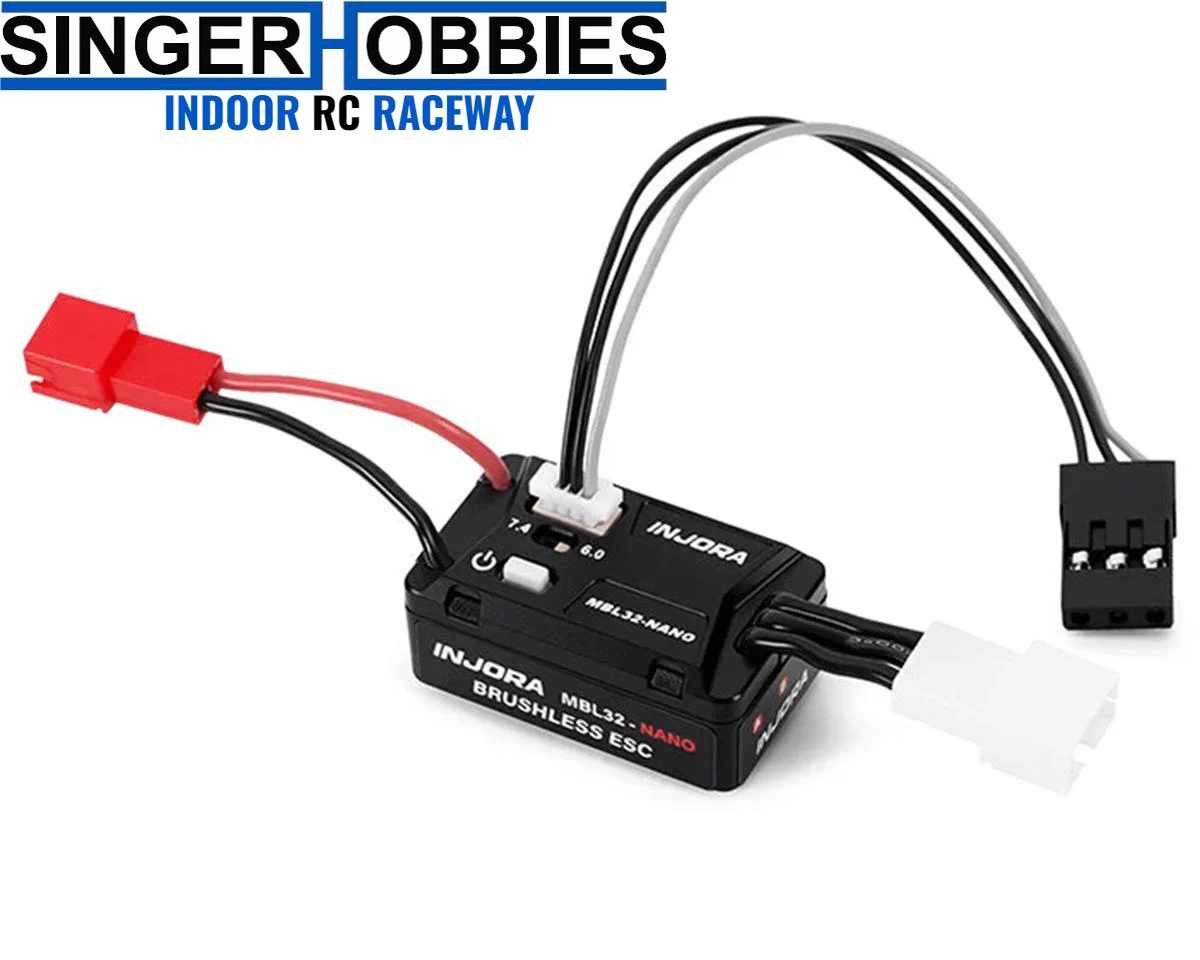

About the MBL32-Nano Brushless ESC

Compact Brushless Control Power
The Axial SCX30 MBL32-Nano Brushless ESC is a pre-configured, ready-to-run solution that delivers ultra-smooth low-speed control with aggressive high-RPM punch, making it ideal for precision crawling. Its compact yet powerful design runs quietly, features a waterproof case for all-weather driving, and includes an adjustable 6V or 7.4V high-output BEC. With 25A continuous and 45A peak current, PC programmability via USB, and built-in protections for low voltage, fail-safe, and rotor lock, it offers big performance in a nano-sized package.
Features:
Pre-configured and ready to run with no programming required
Programmable via PC using a USB programmer card
Smooth and linear control at low speeds
Powerful and aggressive performance at high speeds
Quiet brushless operation with minimal noise
Compact size with big power output
Waterproof design for all-weather driving
Adjustable 6V or 7.4V BEC with 3A current and built-in protections
Includes:
(1) MBL32-Nano Brushless ESC
Specifications:
Suggested Application
1/30 Rock Crawler
Motor Type
Brushless Sensorless
Input Voltage
2S (7.4V) LiPo
Continuous Current
25A
Burst Current
45A
BEC Voltage
5.5V/7.4V
BEC Continuous Current
3A
Battery Connector
Ph2
*Tech Note: Due to the kV rating of the motor, this ESC should only be used with 2S LiPo batteries!
*Tech Note: For use with Injora brushless motors only.
